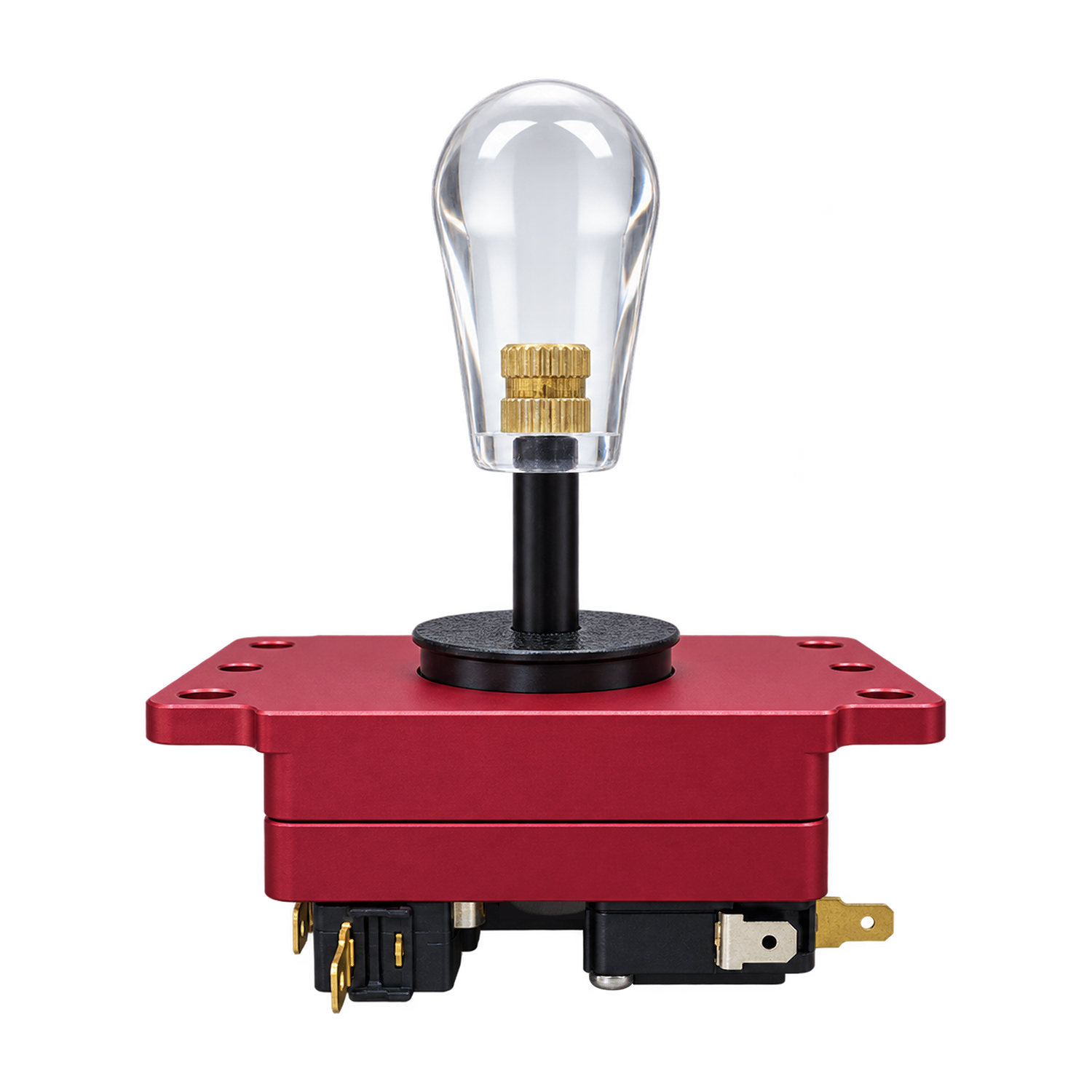

ISTMALL · SANJUKS LEVER SANJUKS V5-HAHigh-quality Aluminum
A lower body. Easier maintenance.
An upgrade to the V5-A
CNC-machined aluminum mounting plate · Underside access Compatible with selected SANJUKS V5/V6/V7 parts Before you orderMounting clearance — The lower body still needs sufficient space for the mounting plate, switches and wiring. Stock tension — A purple Samducksa 30-tension grommet is pre-installed. Color options — One body color is available. Choose your bat top from six translucent colors.

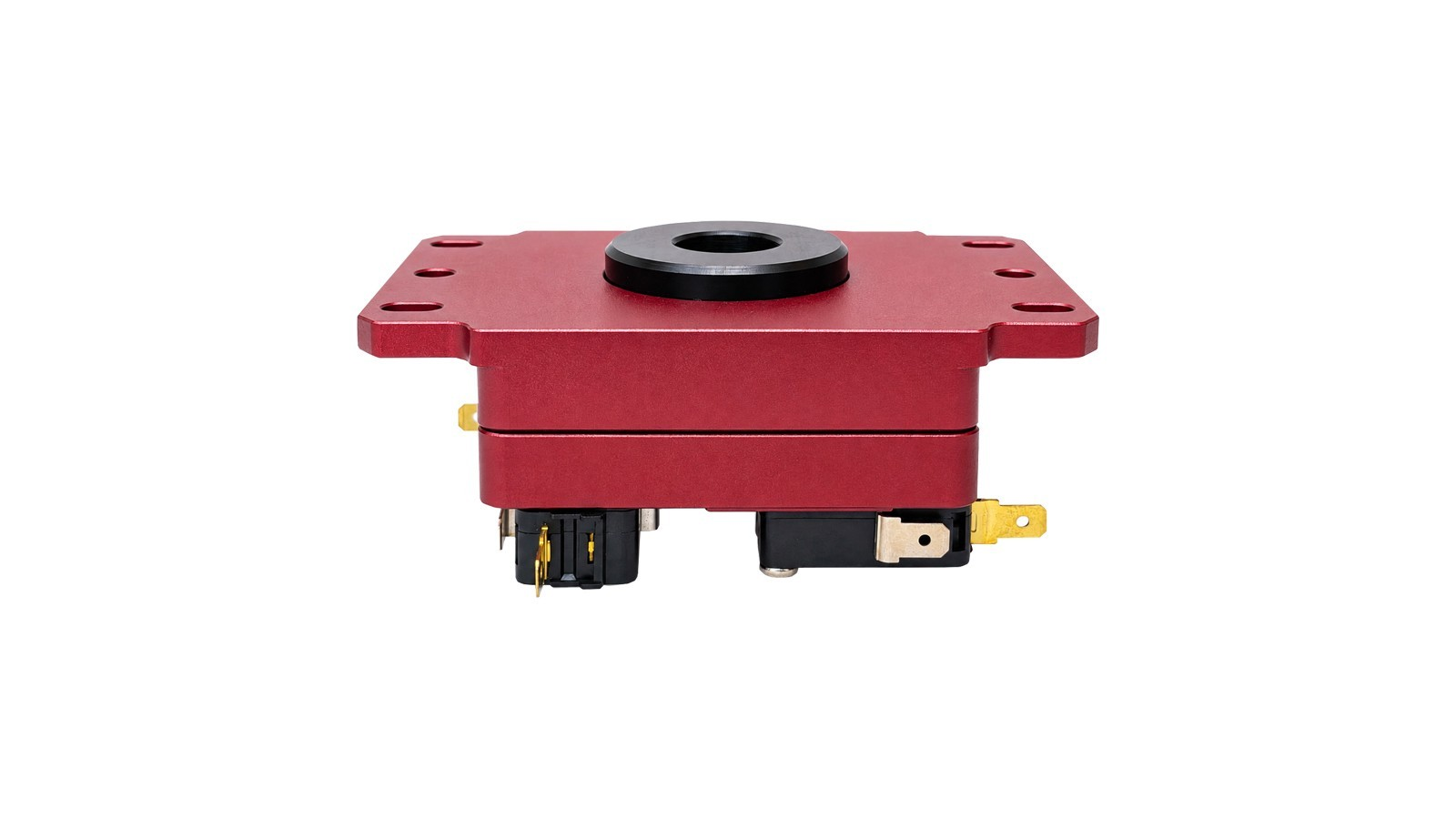

Shown assembled with a Clear White bat top. Select your preferred bat top color from the purchase options. 01 · SANJUKS V5-HA What is new on the V5-HA?The V5-HA is an upgraded V5-A with a revised design and easier access for maintenance. Its metal body has a more unified appearance, with a lower profile for tighter fightstick enclosures and easier access when replacing the grommet or guide insert. 01. Approximately 5 mm lower than the V5 and V6The body height has been reduced by approximately 5 mm, giving you more room to work with in enclosures with limited internal space. The lower profile improves clearance, but does not guarantee compatibility with every slim fightstick.

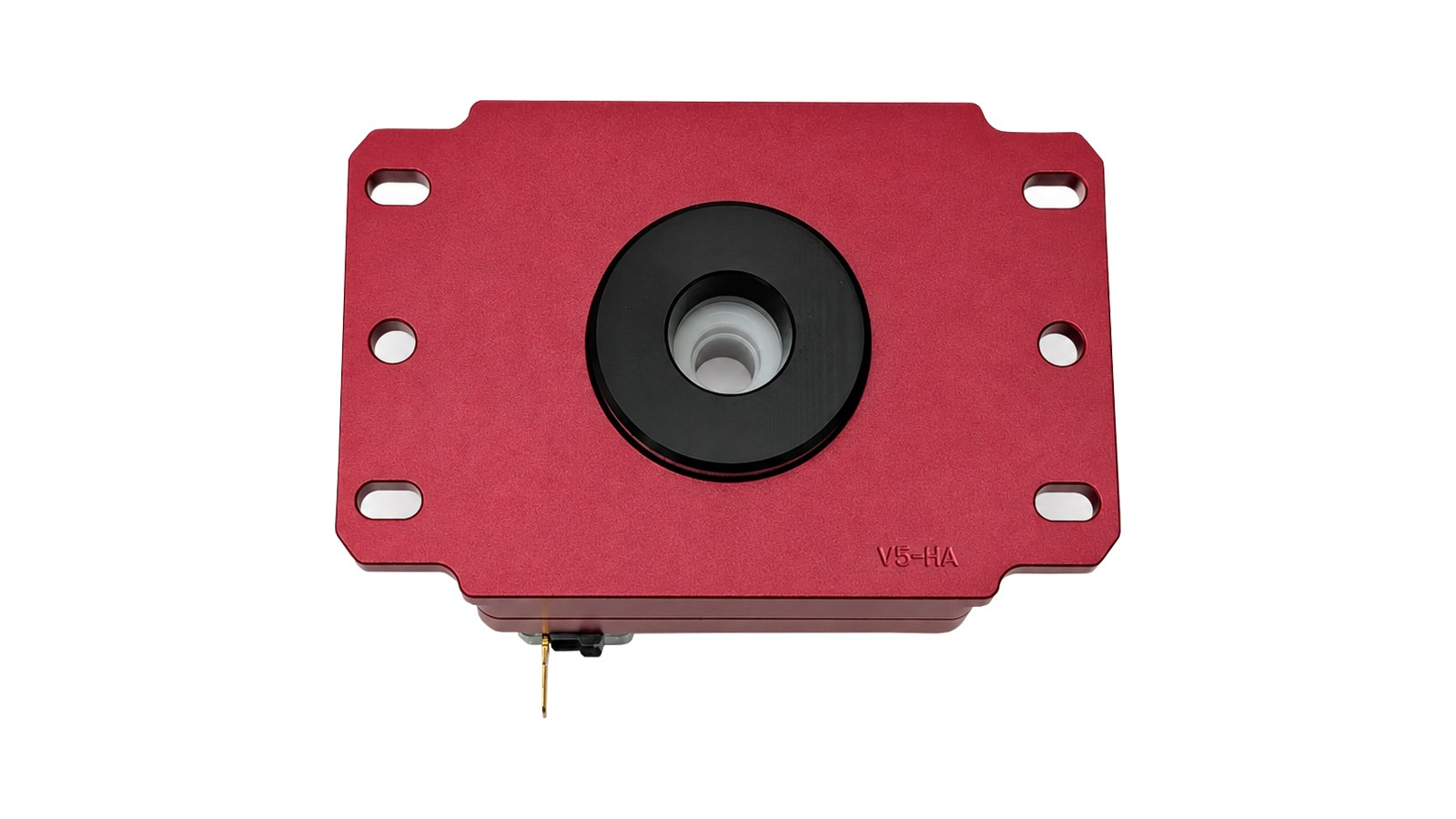

02. A CNC-machined aluminum mounting plateThe previous stainless steel mounting plate has been replaced with a CNC-machined aluminum plate. The plate and housing now share a more consistent appearance, bringing the metal finish and updated design together.

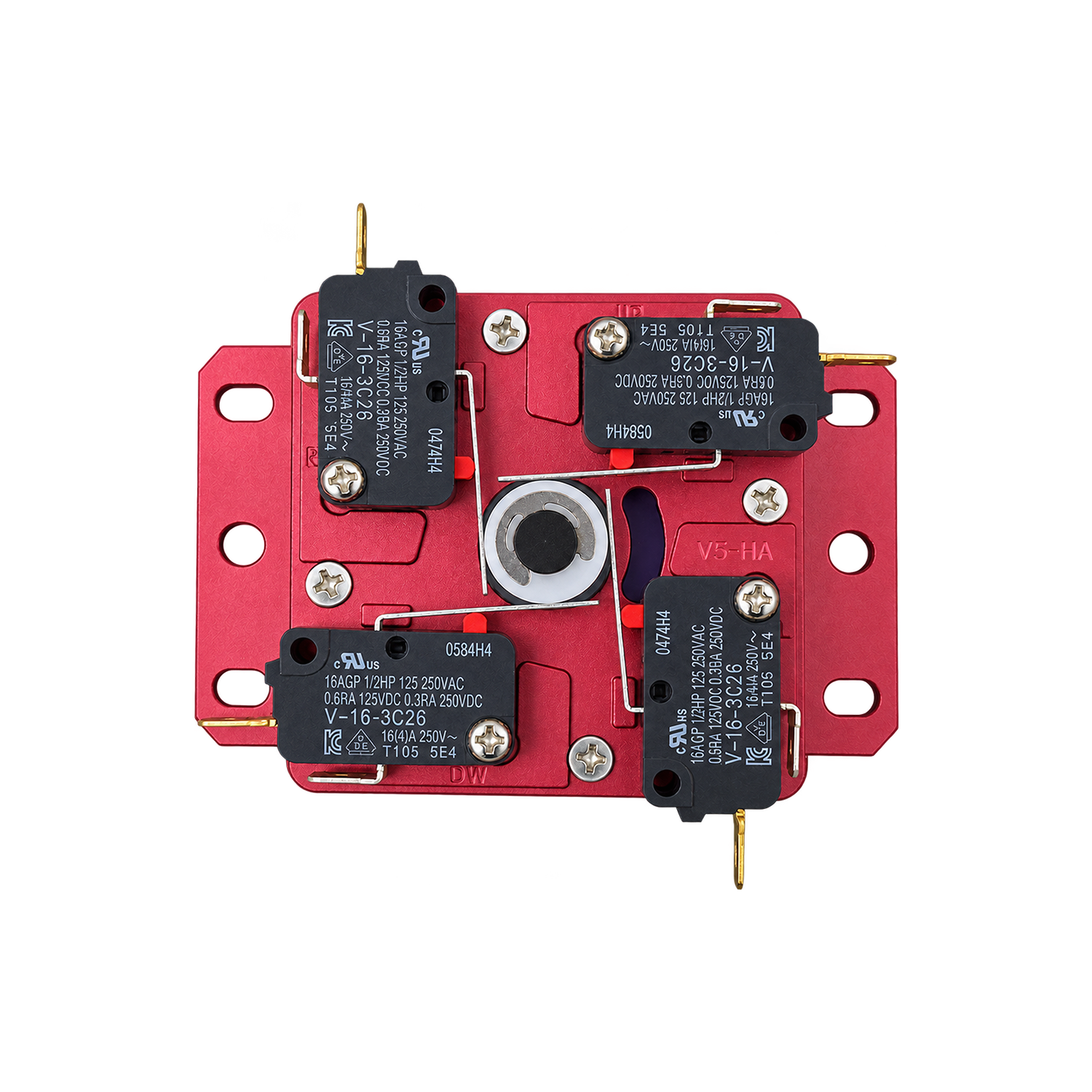

03. Separate the housing from underneathThe upper and lower housing sections can be separated from the underside. This makes it easier to reach the tension grommet and upper guide insert when replacing them. 04. Check the grommet through the inspection slotAn elongated inspection slot has been added to the bottom plate. You can view the internal grommet from below without taking the lever housing apart.
The approximate 5 mm height reduction is relative to the previous V5 and V6. 02 · SANJUKS V5-HA Why players choose SANJUKSPlayers often point to SANJUKS' machining and finish, the quality of its metal construction, and the ability to tune the feel with different parts as reasons for choosing the brand. Attention to the parts inside your fightstickOwner feedback on the V5-A and V6 includes praise for their appearance and build quality. These details appeal to players who care about the internal components of their custom fightstick as well as its controls. Find your preferred feel through tuningSANJUKS owners compare grommet, guide and actuator combinations to find the feel they prefer. The V5-HA also accepts parts from the models listed below, giving you options to build on compatible parts you already own. Use reviews as a starting point, then find your own feelEven among V5 and V6 owners, preferences for throw and resistance vary. We recommend trying the stock 30-tension setup first, then changing one component at a time if you want to adjust the feel. 03 · SANJUKS V5-HA Make use of your existing SANJUKS partsCompatibility depends on the component. Check the shaft, upper guide insert, bobbin and actuator separately before ordering or swapping parts.
The V7 bobbin is not compatible
The V7 uses a square grommet and a differently sized bobbin. 04 · SANJUKS V5-HA Bat top colors and stock tensionOne body color is available. Choose one of the six translucent bat top colors below from the purchase options.
Other compatible detachable tops, including ball tops and capsule-style grips, can also be fitted. Pre-installed: Samducksa 30-tension grommet · PurpleThe grommet affects resistance as you move the lever and its return-to-neutral feel. The V5-HA comes with a purple Samducksa 30-tension grommet. Try the stock setup before changing multiple components, then tune it to your preference. The same 30-tension rating can feel different depending on the lever design, bobbin, grip position and condition of the grommet. Higher tension does not necessarily mean better control or more consistent execution. 05 · SANJUKS V5-HA Check the dimensions before installationThe V5-HA's lower body provides more clearance, but fitment still depends on the mounting-hole positions, internal height and wiring space. Successful V5 or V6 installations do not automatically confirm compatibility with this new model.
25.25 mm of space alone does not guarantee a fitAllow room below the housing for the shaft, actuator, switch terminals and wiring. Check that the lever clears the case bottom and internal supports throughout its full cardinal and diagonal travel. Compare the mounting-hole positions with those in your fightstick as well. If your current lever uses a 5-pin connectorThe V5-HA connects to individual microswitch terminals. A fightstick with an existing 5-pin harness may need a compatible 5-pin to 8-terminal conversion harness or other suitable wiring. Match the harness to your controller PCB and wiring layout.

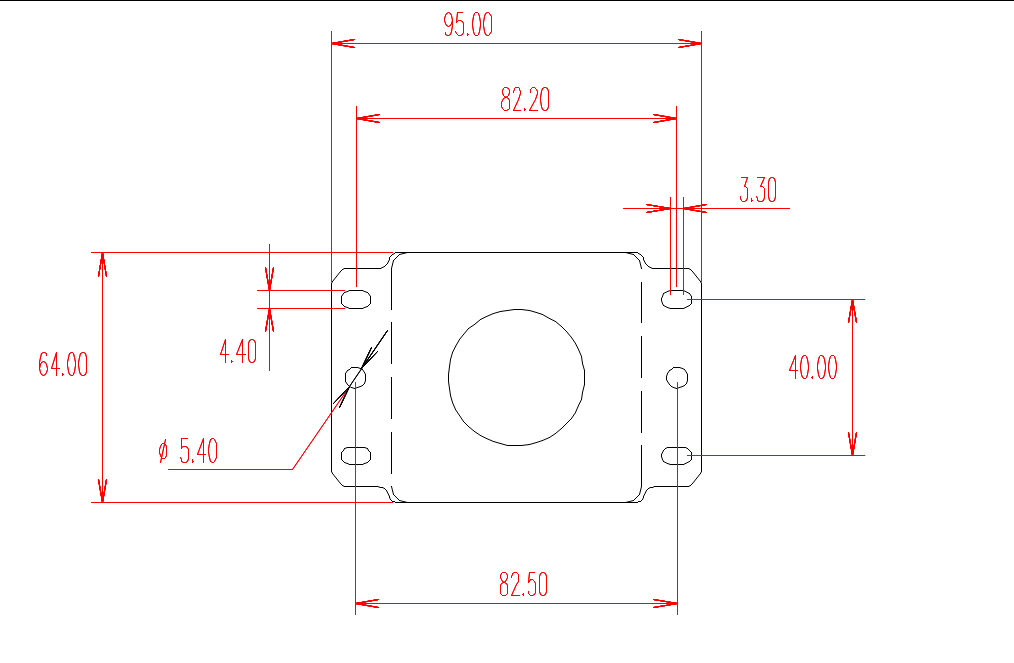

Mounting plate and hole layout · Dimensions in mm

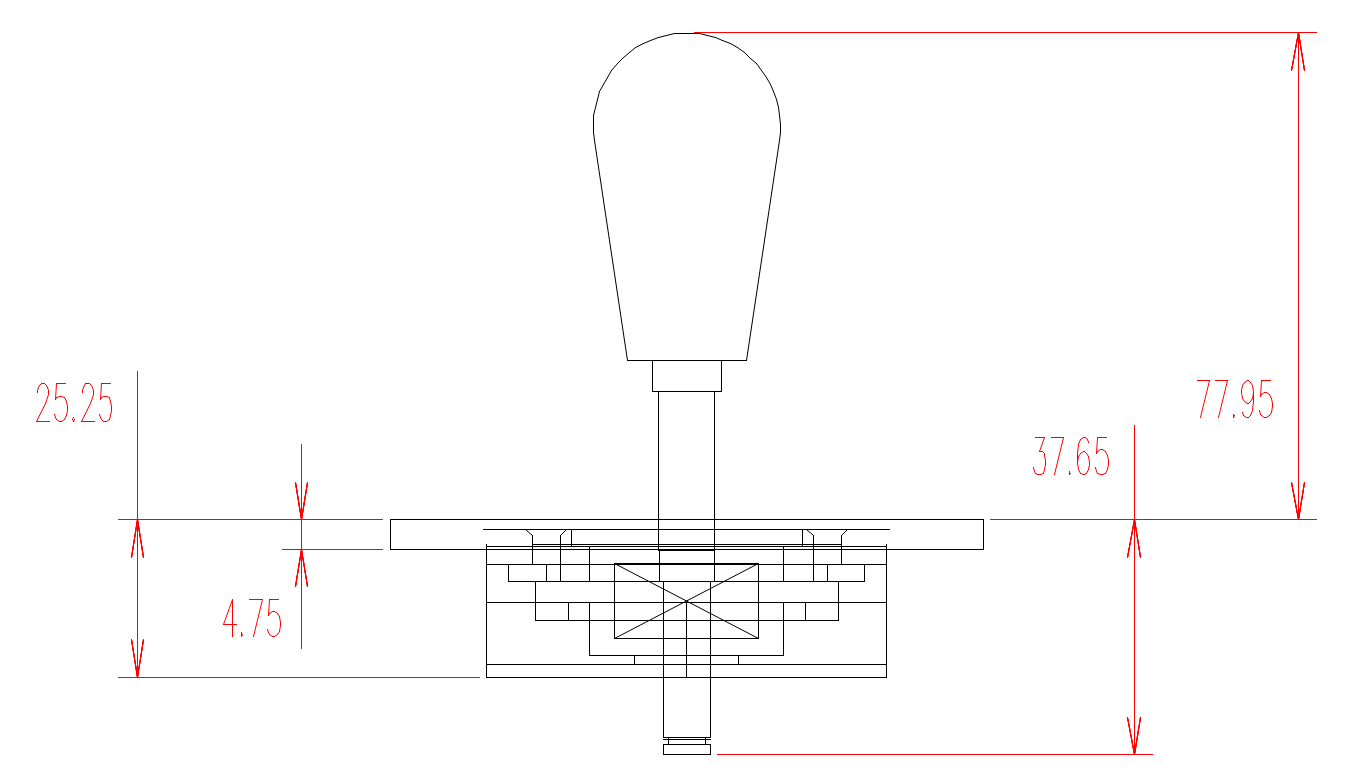

Assembled side-view dimensions · Dimensions in mm 06 · SANJUKS V5-HA Specifications and included parts
Included parts
This list includes both pre-installed components and loose accessories. Check the contents and assembly before you begin. The 8 mm wrench is for securing the bat top; you may need separate tools for your fightstick's bottom panel and the lever housing screws. 07 · SANJUKS V5-HA Installing your V5-HASTEP 01 Check the power connection and existing wiringOpen the case and take photos of the original lever's orientation, wiring and mounting screws before removing it. STEP 02 Check clearance and prepare the wiringCompare the mounting-hole positions and available space beneath the lever, then prepare the harness needed for the switches. Do not force misaligned mounting holes or incompatible connectors. STEP 03 Secure the bat top and lower componentsHold the shaft at its wrench flats with the 8 mm wrench while tightening the bat top securely. Check that the actuator is installed correctly and the E-Clip is fully seated in the shaft groove. STEP 04 Mount the lever and test the inputsConnect the wiring without stretching or pinching it. Keep your hands and tools clear of the interior, reconnect power, and check all four directions, diagonals and neutral in a controller test screen or your game's practice mode. Disconnect power again before closing the bottom panel. Hold the shaft while tightening the bat topFit the included 8 mm wrench to the shaft's wrench flats and hold the shaft steady while tightening the bat top. If the threads do not engage smoothly or the top starts at an angle, stop and realign it instead of forcing it.
