ISTMALL · SANJUKS LEVER SANJUKS Type-RSANJUKS Type-R · Rubber Grommet Lever Grommet return on a V3-based design. Samducksa 15-tension grommet · Acetal Nobi-style grip
Standard rounded-square gate · Flat collar · 3 body colors Before you orderOptions — Choose a Metal Red, Metal Gold, or Metal Violet body. All versions have a black Nobi-style grip. Standard / Optional — A rounded-square gate is pre-installed. The Type-R gate set is sold separately. Installation / Wiring — Check the mounting holes, internal clearance, and wiring. The lever uses an 8-pin connection to the individual switch terminals.

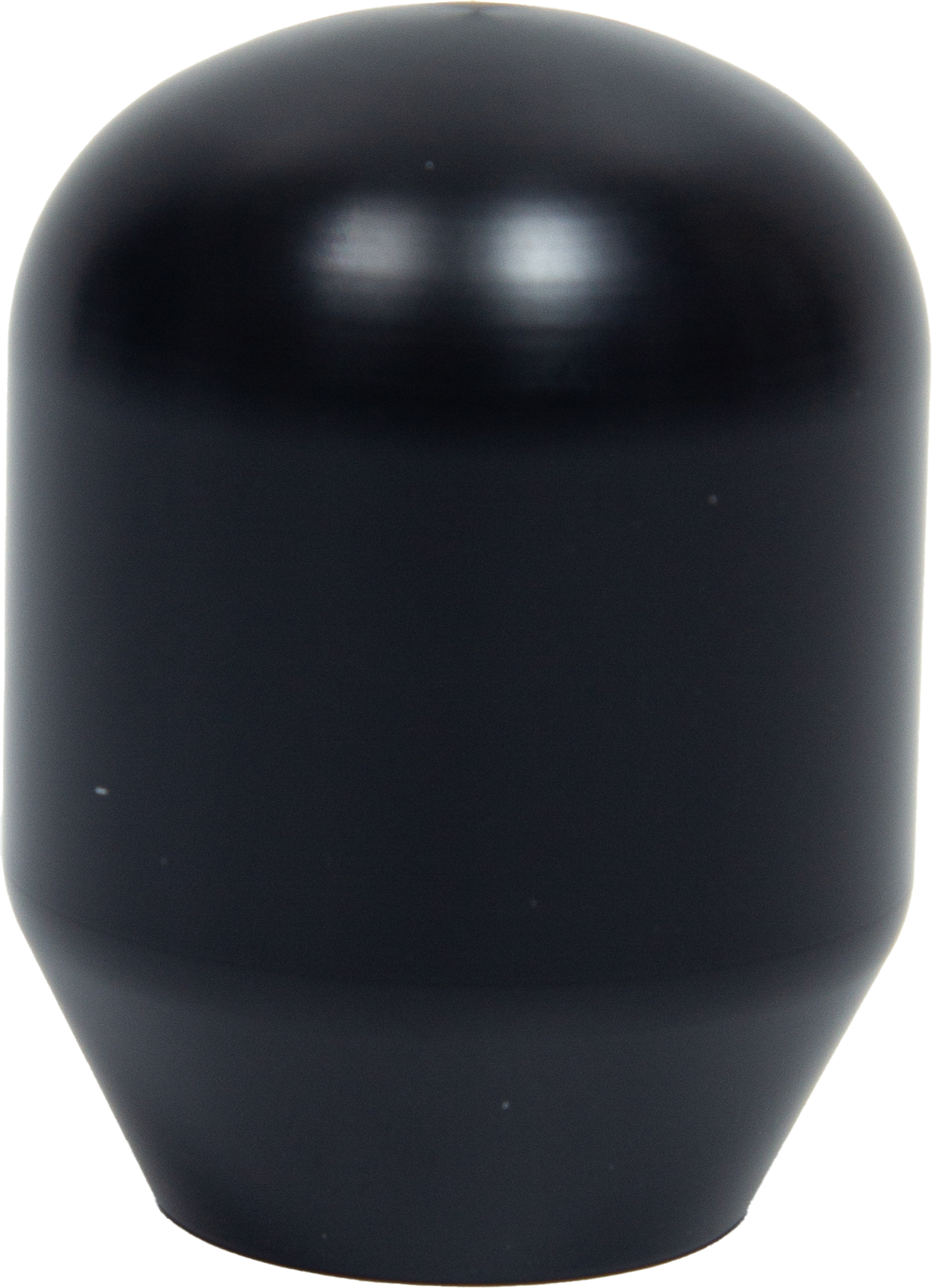

01 · SANJUKS TYPE-R A V3-Based Design with Grommet ReturnThe SANJUKS Type-R is based on the V3, with a Samducksa 15-tension grommet replacing the spring. It combines a flat collar, an acetal Nobi-style grip, and a rounded-square gate to deliver a rubber-grommet-based feel. 01. Samducksa 15-Tension GrommetThe V3 spring mechanism has been replaced with a Samducksa 15-tension grommet. The grommet provides resistance as you move the lever and helps return it to neutral when released. 02. AL6061 Aluminum HousingThe housing uses AL6061 aluminum alloy with an anodized finish. Choose from Metal Red, Metal Gold, or Metal Violet. 03. CNC-Machined Acetal Nobi-Style GripThe lever uses a precision CNC-machined black acetal Nobi-style grip, with a rounded top and a tapered lower section. The shaft uses hard-anodized aluminum.

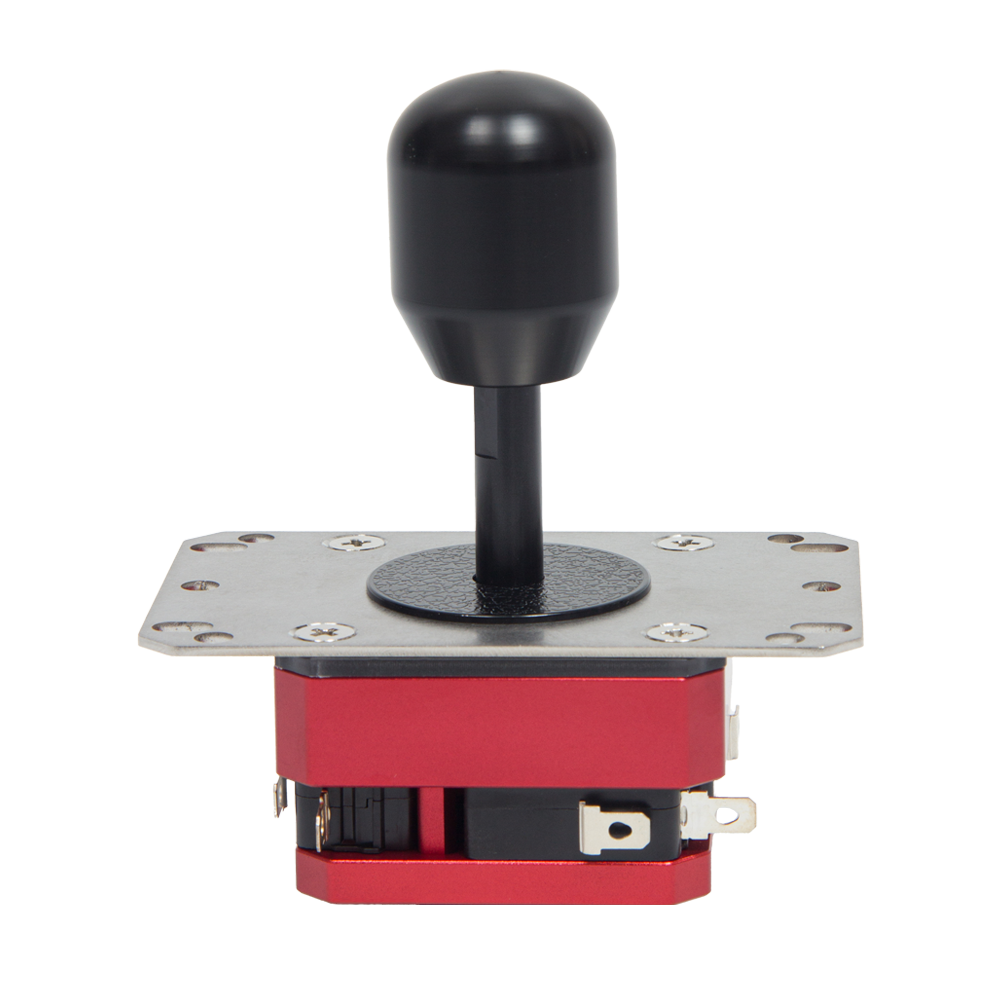

02 · SANJUKS TYPE-R Body Colors · 3 ChoicesChoose the body color to suit your arcade stick. All versions use the same black Nobi-style grip; body color is the selectable option. Metal Red

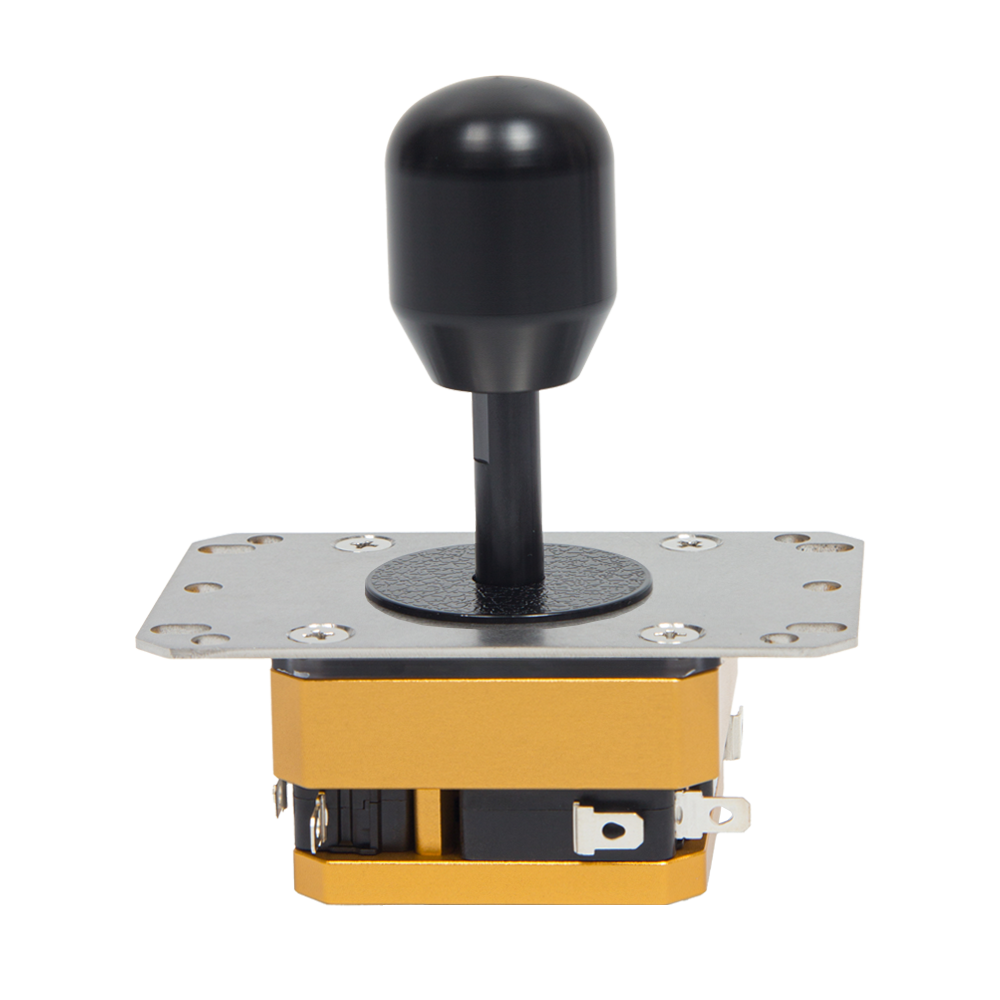

Metal Gold

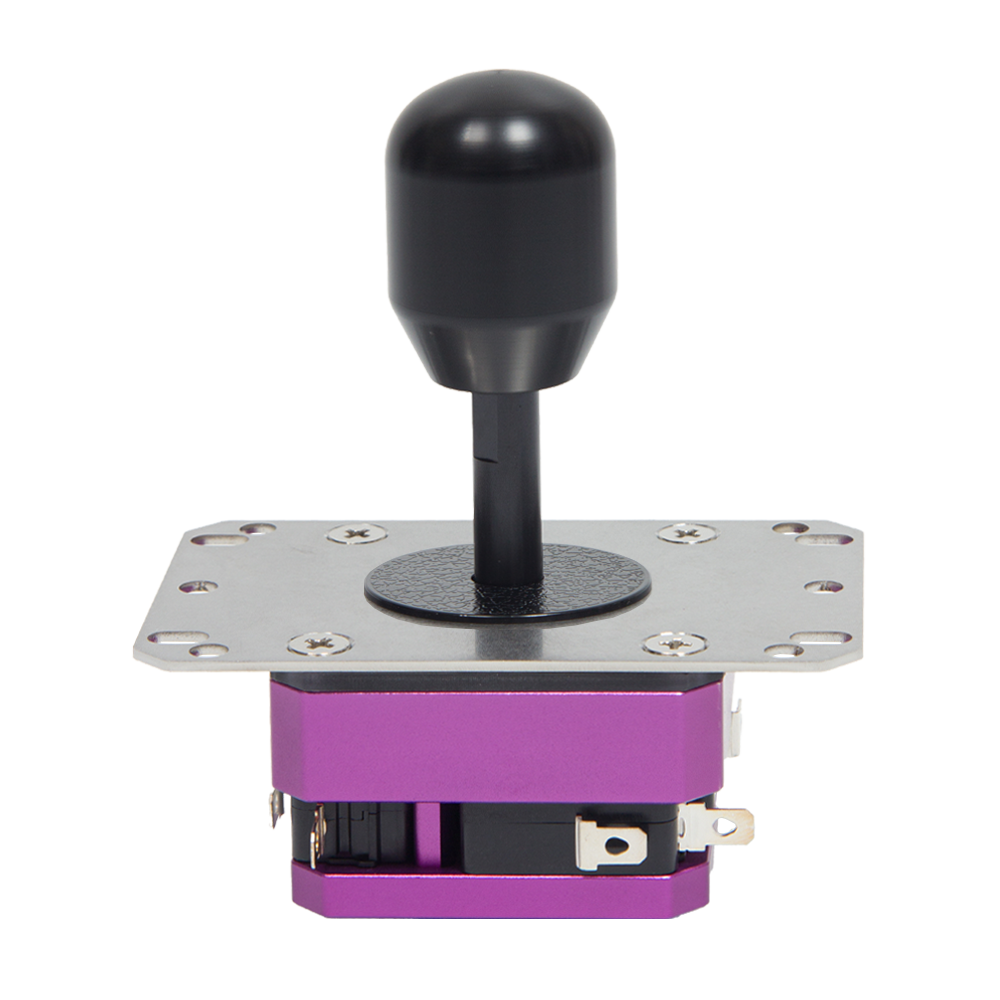

Metal Violet

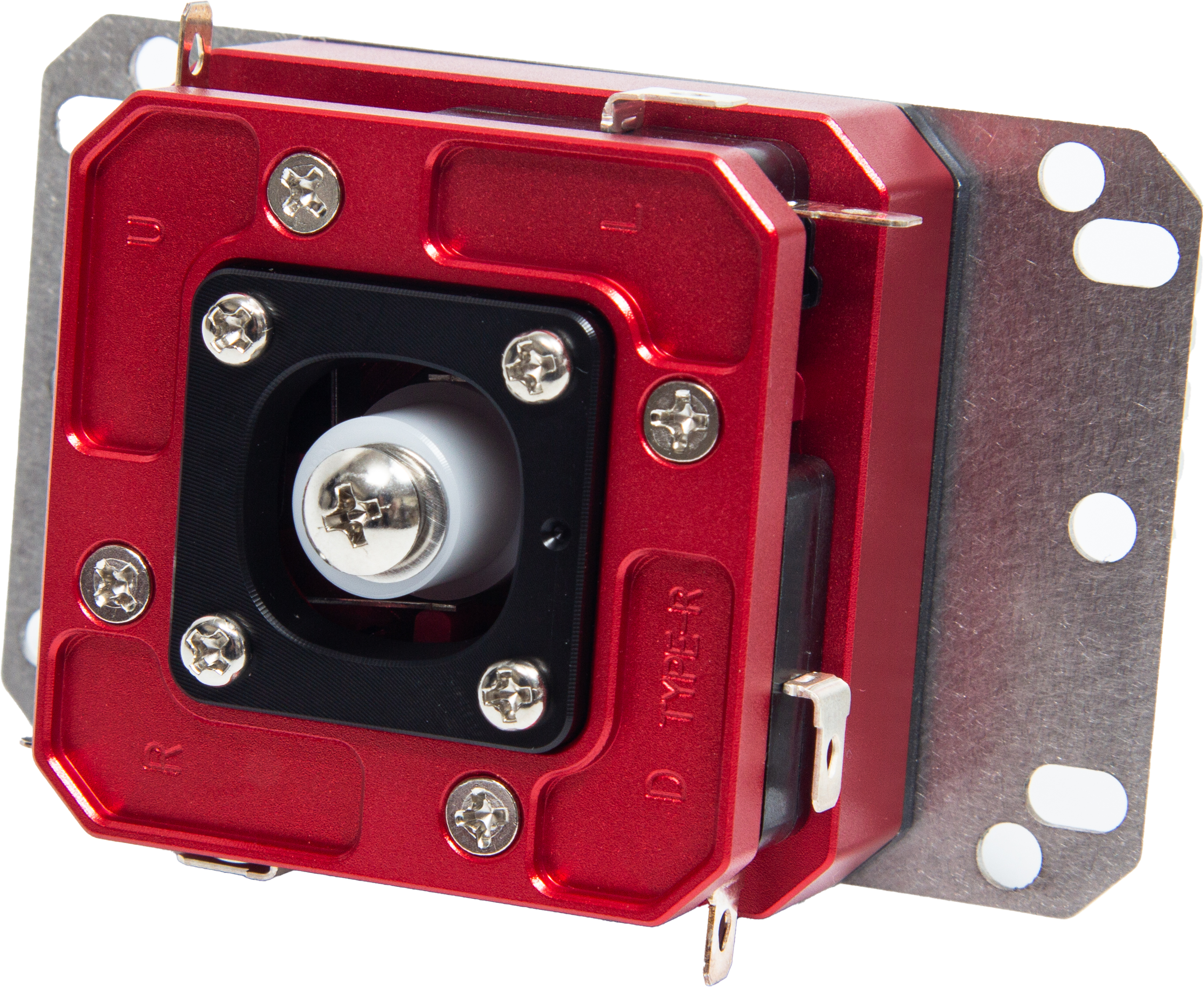

The photos show assembled examples of each color. One lever in your selected body color is supplied, not a set of three. Actual colors may vary with lighting and display settings. 03 · SANJUKS TYPE-R Standard Gate and Optional Gate SetA rounded-square gate is pre-installed on the Type-R. This shape combines circular and square gate characteristics, with a rounded travel boundary and defined corners. Standard · Rounded-Square GateThe gate defines the lever’s range of movement. The Type-R’s standard rounded-square shape is visible in the inner opening of the black gate mounted underneath the lever.
Sold Separately · Type-R Gate SetA circular / square / octagonal gate set is available separately for changing the feel of the travel boundary. It is not included with the lever. Add the Type-R gate set to your purchase if required. Circular Gate

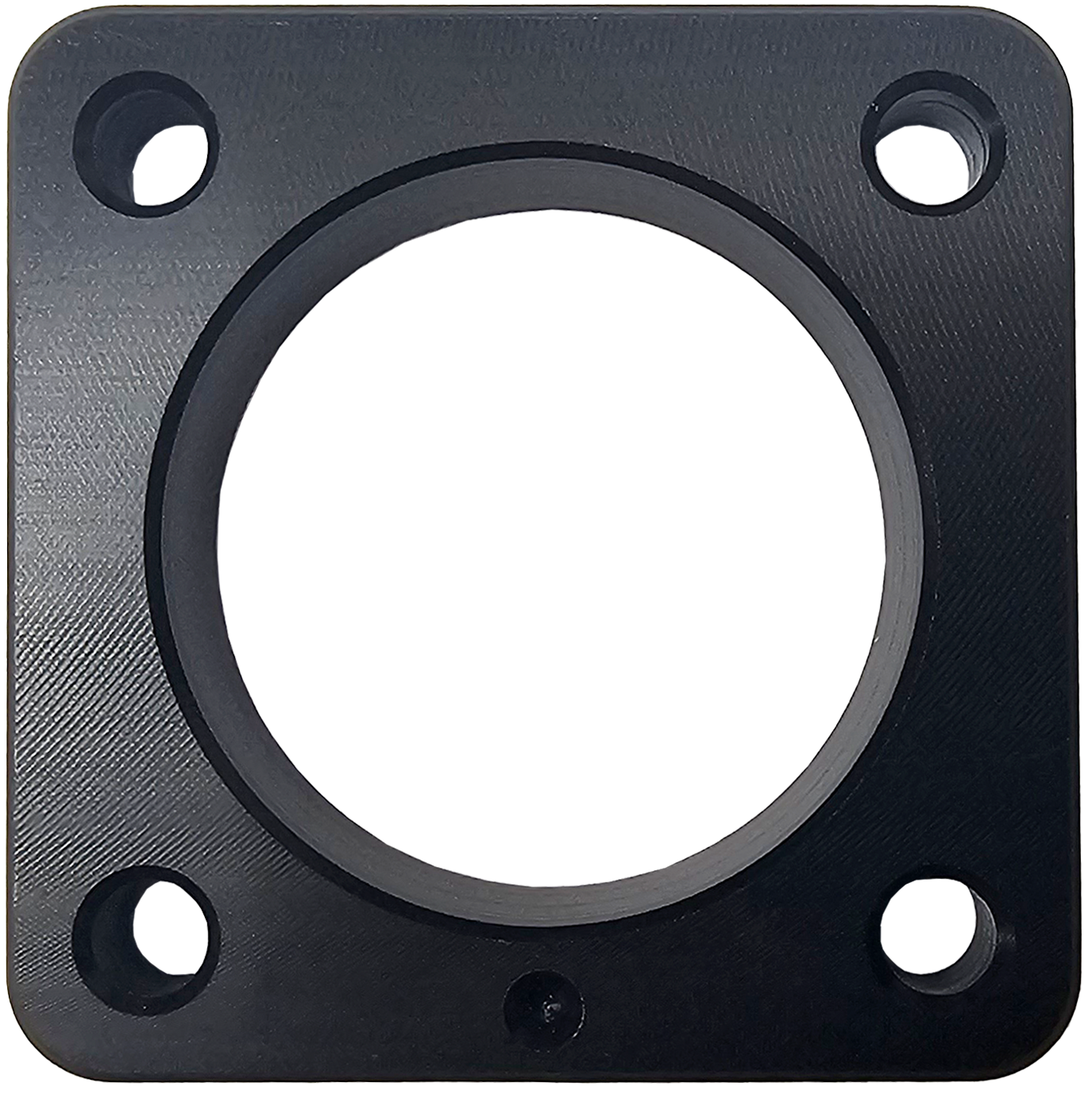

A continuous circular inner boundary. Square Gate

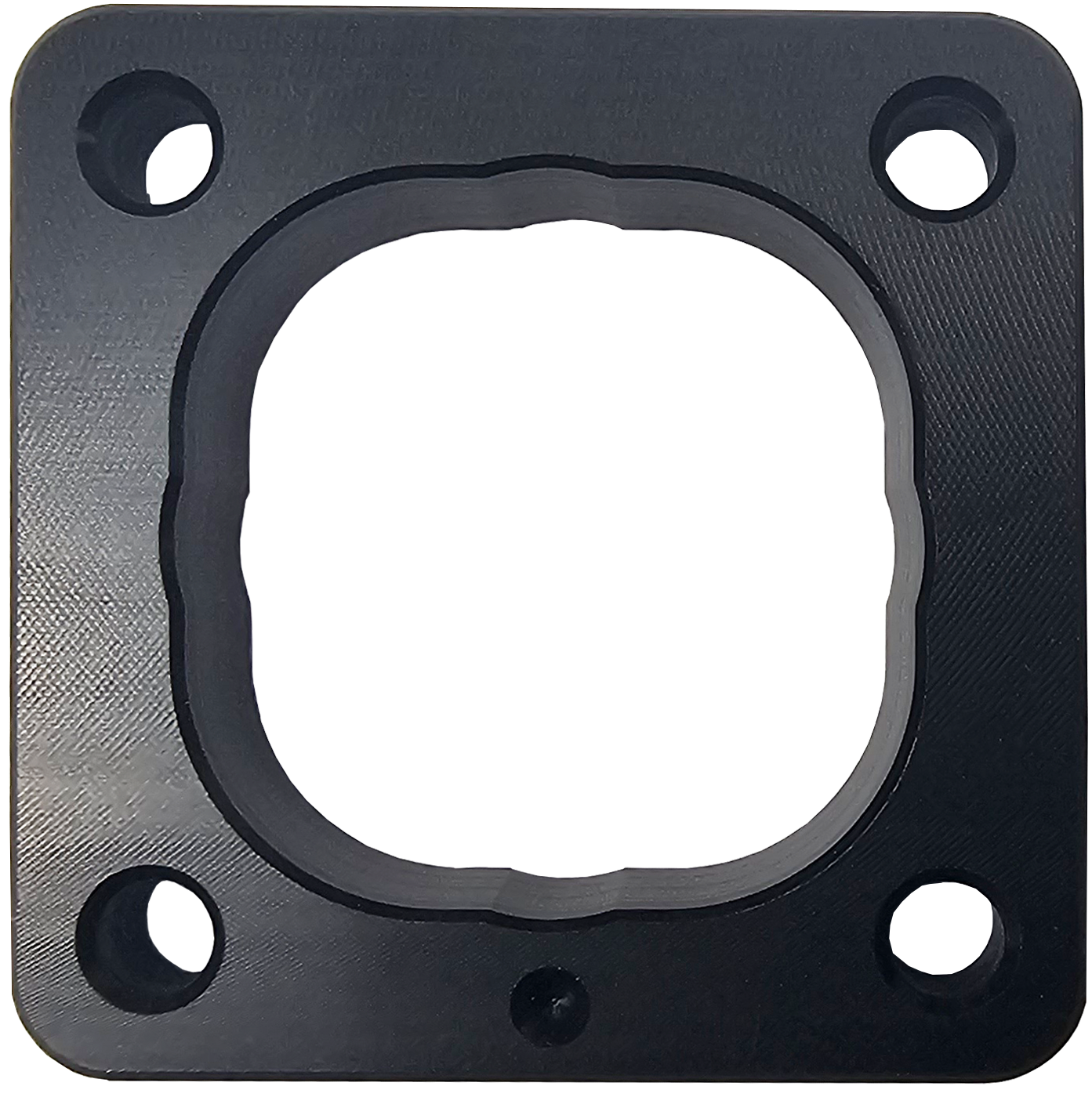

A travel boundary defined by four corners. Octagonal Gate

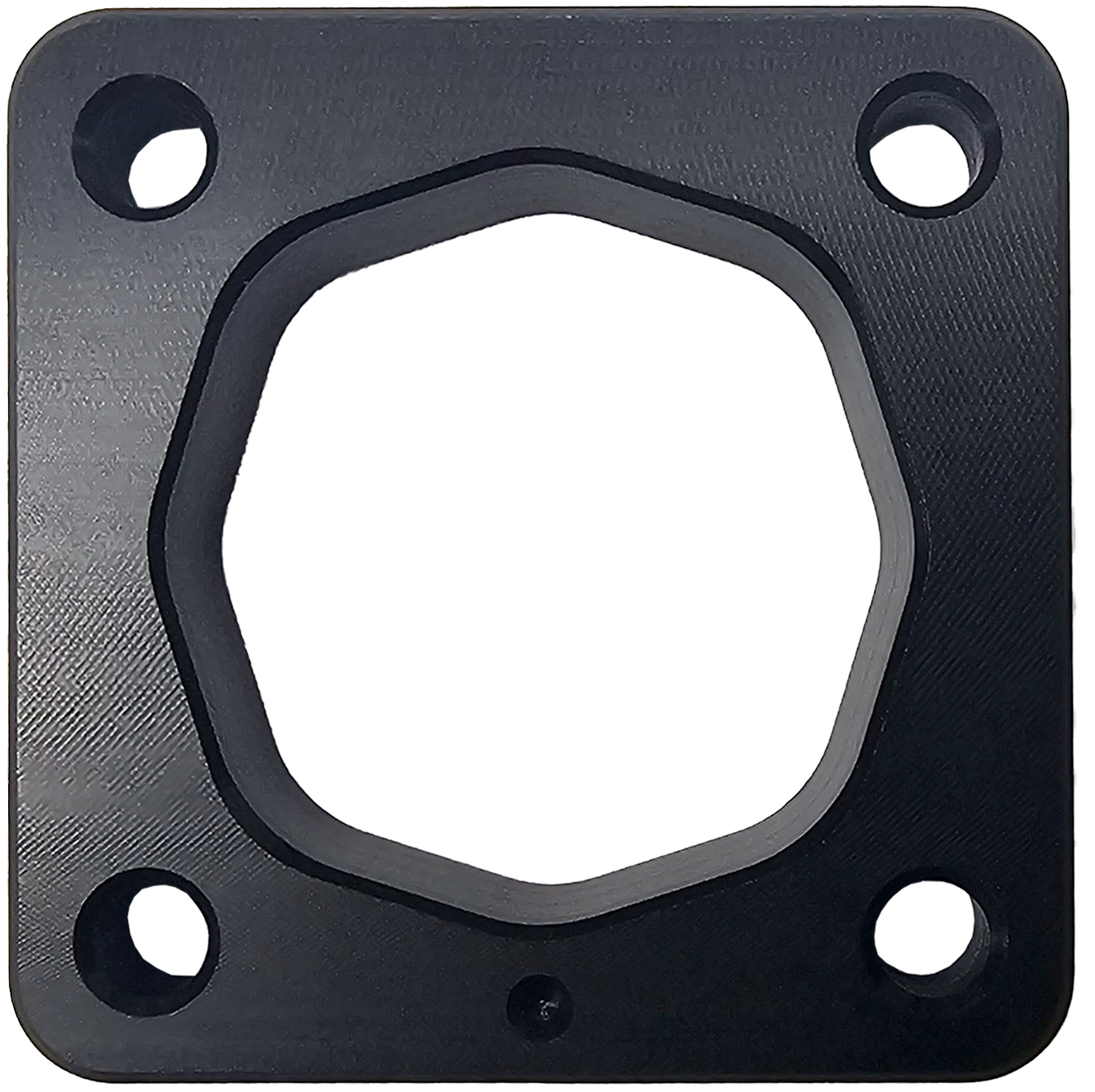

An inner boundary divided into eight sides. Gate names describe the shape of the travel boundary. “Square” and “octagonal” do not mean that the lever’s input directions are restricted. Check that replacement gates are specifically compatible with the Type-R. 04 · SANJUKS TYPE-R Check Your Fightstick Before InstallationThe Type-R uses a flat design with no raised collar and a stainless steel mounting plate. It can be considered for JLF-style mounting, but check the mounting-hole positions and internal clearance before installation.
This list is based on the mounting information on the existing product page. Later generations with the same name, or products with modified panels or internal layouts, may have different installation requirements. 01. Mounting Holes and Plate DimensionsThe lever uses a Type-R-specific stainless steel mounting plate. The drawing shows overall dimensions of approximately 97 × 58 mm. Compare the mounting positions of your existing lever and case. 02. Body Height and Lower ClearanceThe product page lists a body height of approximately 39.5 mm, excluding the grip, shaft, and collar. The listed measurement may vary by 2–3 mm. Allow extra clearance so the lower actuator, switch terminals, and wiring do not touch the case bottom. 03. Check the Harness for Existing 5-Pin WiringThe Type-R uses an 8-pin connection to the individual microswitch terminals. If your existing arcade stick uses a 5-pin connector, you may need a 5-pin-to-8-pin conversion harness that matches the PCB pinout and terminal size. 05 · SANJUKS TYPE-R Specifications and Standard Configuration
Included and Separately Sold Items

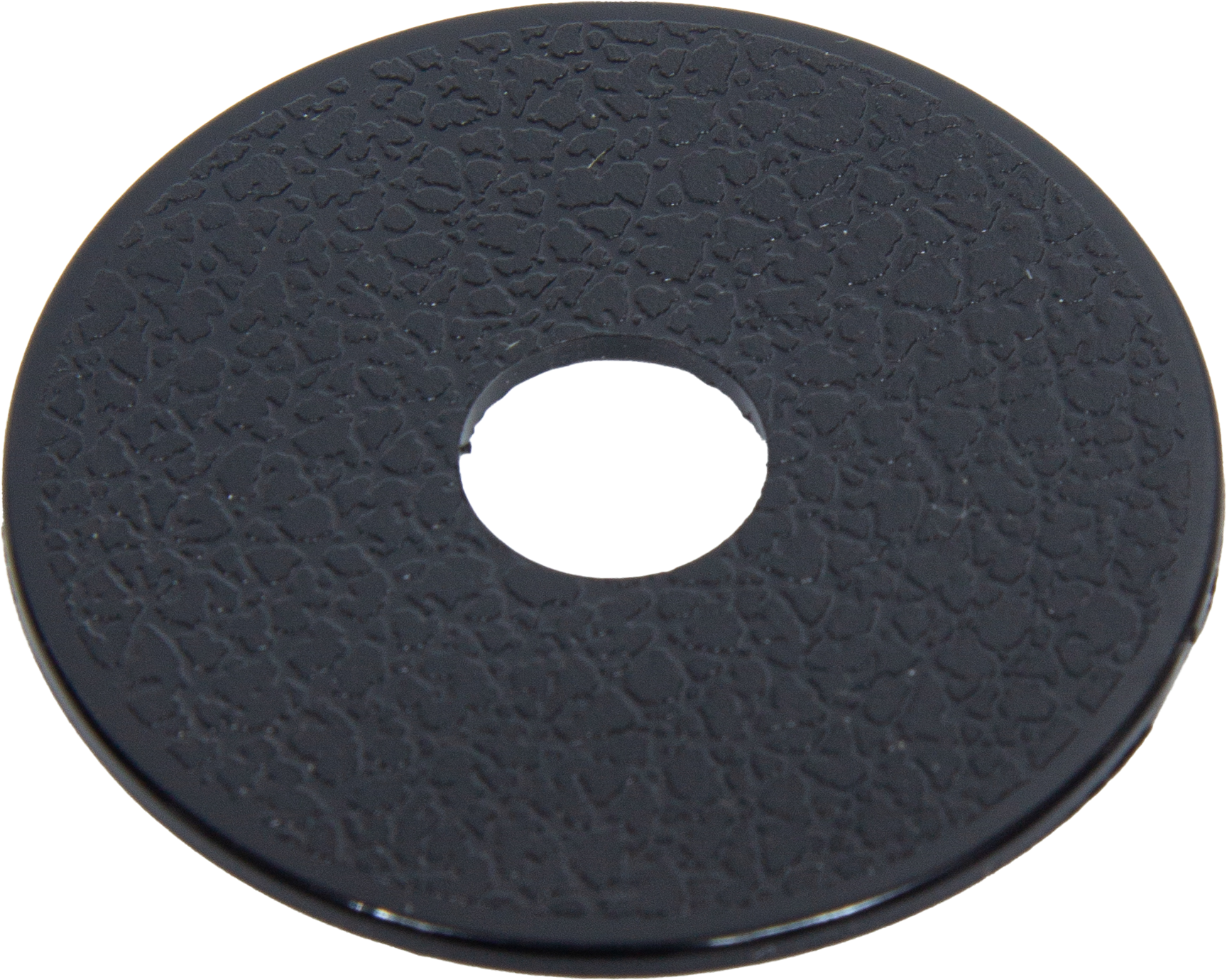

Specifications are based on the product page. Photos illustrate the structure and colors; separately sold items are not all included with the lever. 06 · SANJUKS TYPE-R Lever Feel and Component CareThe product page describes the Type-R’s tension as Soft. This is a subjective rating; the feel may differ depending on your previous lever and how you hold the grip. Dust Washer and Shaft AreaA black dust washer covers the area around the shaft. Check that it is not pinched against the panel or interfering with other parts, and remove dust from the surrounding area with a soft cloth.
Replacing the Grommet or GateCheck that replacement parts are compatible with the Type-R. The combination of grommet, gate, and actuator can change the travel range and input feel. Check Before Modifying PartsBending the switch levers or modifying the gate or actuator can change input behavior. If something feels wrong, check assembly and clearance before modifying any parts. 07 · SANJUKS TYPE-R Test All Directions After InstallationSTEP 01 Disconnect Power and Record the WiringDisconnect power before opening the case. Before removing the existing lever, photograph the directional and common-wire connections for reference during assembly. STEP 02 Mount the Lever and Check ClearanceAlign the mounting-plate holes and install the lever. Check that the shaft, dust washer, lower actuator, switch terminals, and wiring do not interfere with the panel or case bottom. STEP 03 Connect the Directional Switch WiringConnect the wiring according to the PCB pinout and check that all terminals are secure. If the existing wiring uses a 5-pin connector, use a compatible conversion harness. STEP 04 Check Inputs and Return to NeutralBefore closing the case, use an input-test screen to check up, down, left, right, and all four diagonals. Also check that the lever returns to neutral when released and that no directional input remains active. ISTMALL · Before-You-Order Support If you are unsure about fitment, send us your arcade stick model and photos of the internal mounting area through Product Inquiry. This helps us check the Type-R’s installation requirements and any additional parts you may need. |
