ISTMALL · SANJUKS LEVER
SANJUKS V5-HA
High-quality Aluminum
A lower body. Easier maintenance.
A new design in CNC-machined aluminum.
An upgrade to the V5-A
CNC-machined aluminum mounting plate · Underside access
Compatible with selected SANJUKS V5/V6/V7 parts
CNC-machined aluminum mounting plate · Underside access
Compatible with selected SANJUKS V5/V6/V7 parts
Before you order
Mounting clearance — The lower body still needs sufficient space for the mounting plate, switches and wiring.
Stock tension — A purple Samducksa 30-tension grommet is pre-installed.
Color options — One body color is available. Choose your bat top from six translucent colors.

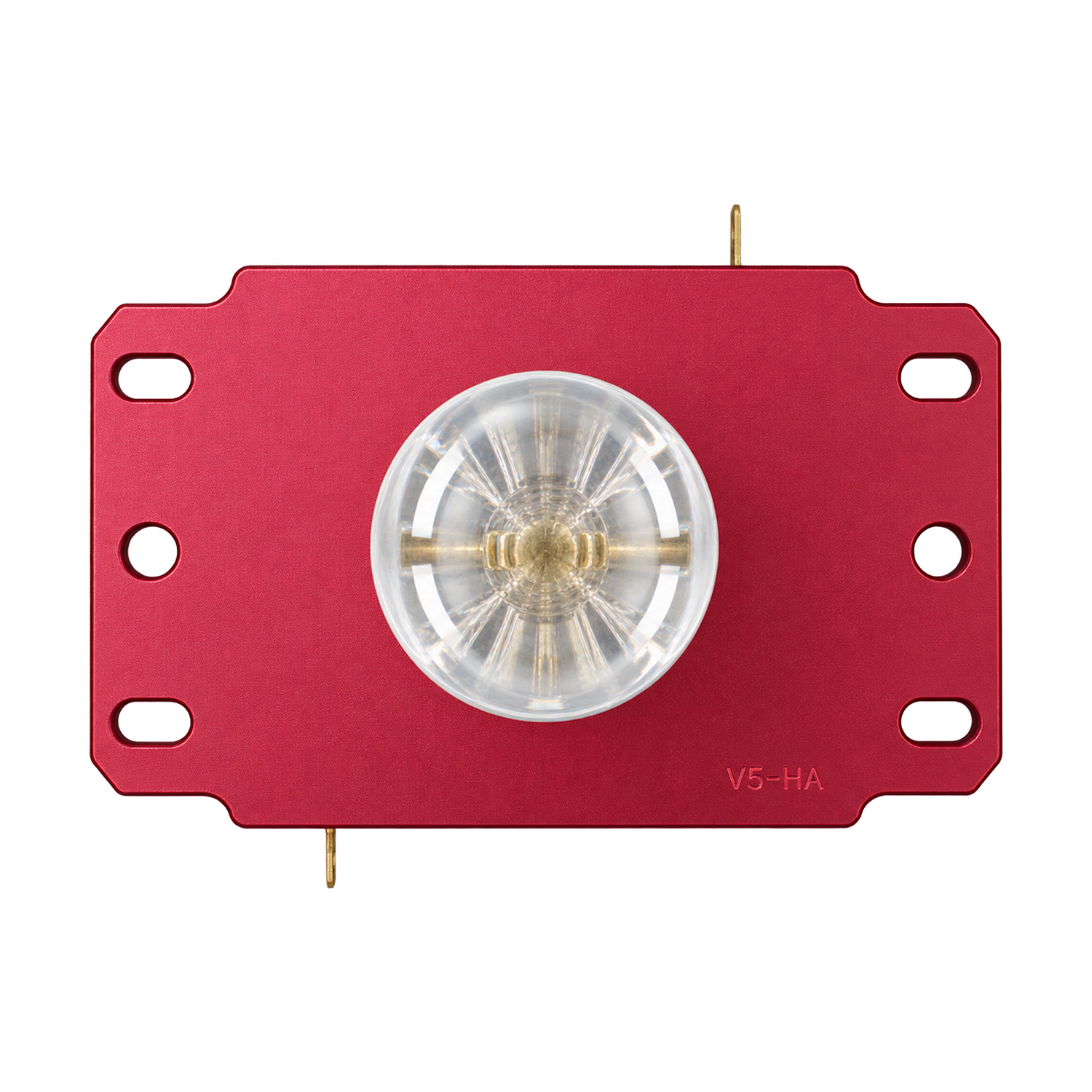

Shown assembled with a Clear White bat top. Select your preferred bat top color from the purchase options.
01 · SANJUKS V5-HA
What is new on the V5-HA?
The V5-HA is an upgraded V5-A with a revised design and easier access for maintenance. Its metal body has a more unified appearance, with a lower profile for tighter fightstick enclosures and easier access when replacing the grommet or guide insert.
01. Approximately 5 mm lower than the V5 and V6
The body height has been reduced by approximately 5 mm, giving you more room to work with in enclosures with limited internal space. The lower profile improves clearance, but does not guarantee compatibility with every slim fightstick.
02. A CNC-machined aluminum mounting plate
The previous stainless steel mounting plate has been replaced with a CNC-machined aluminum plate. The plate and housing now share a more consistent appearance, bringing the metal finish and updated design together.
03. Separate the housing from underneath
The upper and lower housing sections can be separated from the underside. This makes it easier to reach the tension grommet and upper guide insert when replacing them.
04. Check the grommet through the inspection slot

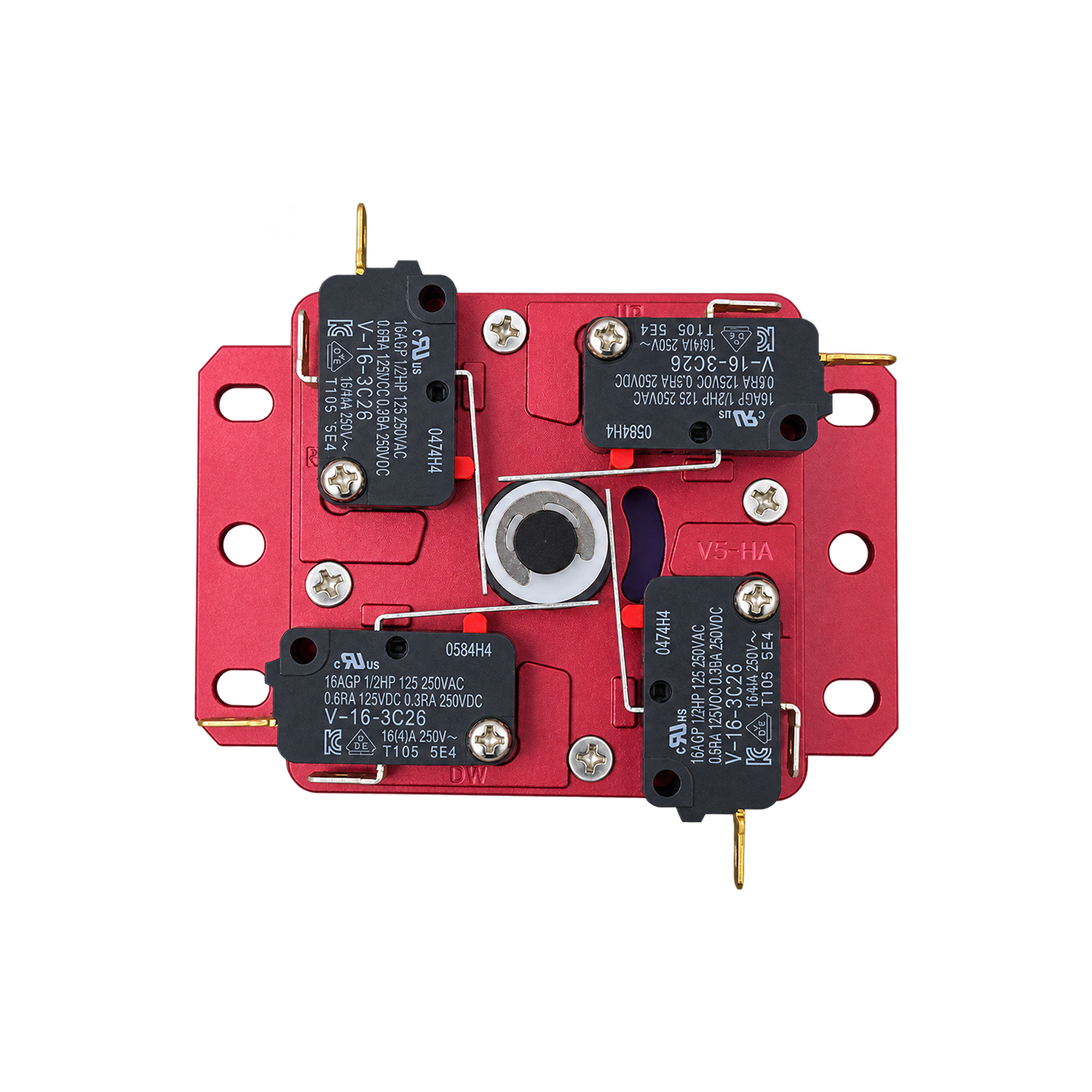

An elongated inspection slot has been added to the bottom plate. You can view the internal grommet from below without taking the lever housing apart.
The approximate 5 mm height reduction is relative to the previous V5 and V6.
02 · SANJUKS V5-HA
Why players choose SANJUKS
Players often point to SANJUKS' machining and finish, the quality of its metal construction, and the ability to tune the feel with different parts as reasons for choosing the brand.
Attention to the parts inside your fightstick
Owner feedback on the V5-A and V6 includes praise for their appearance and build quality. These details appeal to players who care about the internal components of their custom fightstick as well as its controls.
Find your preferred feel through tuning
SANJUKS owners compare grommet, guide and actuator combinations to find the feel they prefer. The V5-HA also accepts parts from the models listed below, giving you options to build on compatible parts you already own.
Use reviews as a starting point, then find your own feel
Even among V5 and V6 owners, preferences for throw and resistance vary. We recommend trying the stock 30-tension setup first, then changing one component at a time if you want to adjust the feel.
03 · SANJUKS V5-HA
Make use of your existing SANJUKS parts
Compatibility depends on the component. Check the shaft, upper guide insert, bobbin and actuator separately before ordering or swapping parts.
| Component | Existing parts compatible with the V5-HA |
|---|---|
| Shaft | Shafts from the V5-A / V6 / V6-2 / V7 |
| Upper guide insert | Upper guide inserts (collar inserts) from the V5-A / V6 / V6-2 / V7 |
| Bobbin | Bobbins from the V6 / V6-2 / V6-ST |
| Actuator | Actuators from the V6 / V6-2 / V7 |
The V7 bobbin is not compatible
The V7 uses a square grommet and a differently sized bobbin.
Although its shaft, upper guide insert and actuator are compatible, the V7 bobbin cannot be used in the V5-HA.
04 · SANJUKS V5-HA
Bat top colors and stock tension
One body color is available. Choose one of the six translucent bat top colors below from the purchase options.
| Option | Bat top color |
|---|---|
| 01 | Clear White |
| 02 | Clear Red |
| 03 | Clear Pink |
| 04 | Clear Blue |
| 05 | Clear Violet |
| 06 | Clear Smoke |
Other compatible detachable tops, including ball tops and capsule-style grips, can also be fitted.
Pre-installed: Samducksa 30-tension grommet · Purple
The grommet affects resistance as you move the lever and its return-to-neutral feel. The V5-HA comes with a purple Samducksa 30-tension grommet. Try the stock setup before changing multiple components, then tune it to your preference.
The same 30-tension rating can feel different depending on the lever design, bobbin, grip position and condition of the grommet. Higher tension does not necessarily mean better control or more consistent execution.
05 · SANJUKS V5-HA
Check the dimensions before installation
The V5-HA's lower body provides more clearance, but fitment still depends on the mounting-hole positions, internal height and wiring space. Successful V5 or V6 installations do not automatically confirm compatibility with this new model.
| Measurement | Reference dimensions from the drawings |
|---|---|
| Mounting plate size | Approx. 95 × 64 mm |
| Mounting plate thickness | Approx. 4.75 mm |
|
Top face of mounting plate → Bottom of housing |
Approx. 25.25 mm Housing height as shown in the drawing. |
|
Top face of mounting plate → Bottom of shaft |
Approx. 37.65 mm This is different from the housing height. |
|
Top face of mounting plate → Top of bat top |
Approx. 77.95 mm For the assembled configuration shown in the drawing. |
25.25 mm of space alone does not guarantee a fit
Allow room below the housing for the shaft, actuator, switch terminals and wiring. Check that the lever clears the case bottom and internal supports throughout its full cardinal and diagonal travel. Compare the mounting-hole positions with those in your fightstick as well.
If your current lever uses a 5-pin connector
The V5-HA connects to individual microswitch terminals. A fightstick with an existing 5-pin harness may need a compatible 5-pin to 8-terminal conversion harness or other suitable wiring. Match the harness to your controller PCB and wiring layout.
Mounting plate and hole layout · Dimensions in mm
Assembled side-view dimensions · Dimensions in mm
06 · SANJUKS V5-HA
Specifications and included parts
| Product | SANJUKS V5-HA Lever |
|---|---|
| HA stands for | High-quality Aluminum |
| Model | Upgraded version of the V5-A |
| Mounting plate / Body | CNC-machined aluminum mounting plate and housing |
| Body color | One color |
| Bat top colors | Clear White · Clear Red · Clear Pink · Clear Blue · Clear Violet · Clear Smoke |
| Stock grommet | Samducksa grommet · 30 tension / Purple |
| Housing | Upper and lower sections separate from the underside |
| Grommet inspection | View the grommet through the slot in the bottom plate |
| Connection | Individual microswitch terminals |
Included parts
| Category | What is included |
|---|---|
| Lever / Bat top |
V5-HA body · Shaft · Bat top in your selected color Samducksa 30-tension grommet pre-installed |
| Actuation / Retention | Actuator · E-Clip |
| Dust washer | Included |
| Tool |
8 mm wrench (spanner) Used to hold the shaft while securely tightening the bat top. |
This list includes both pre-installed components and loose accessories. Check the contents and assembly before you begin. The 8 mm wrench is for securing the bat top; you may need separate tools for your fightstick's bottom panel and the lever housing screws.
07 · SANJUKS V5-HA
Installing your V5-HA
STEP 01
Check the power connection and existing wiring
Open the case and take photos of the original lever's orientation, wiring and mounting screws before removing it.
STEP 02
Check clearance and prepare the wiring
Compare the mounting-hole positions and available space beneath the lever, then prepare the harness needed for the switches. Do not force misaligned mounting holes or incompatible connectors.
STEP 03
Secure the bat top and lower components
Hold the shaft at its wrench flats with the 8 mm wrench while tightening the bat top securely. Check that the actuator is installed correctly and the E-Clip is fully seated in the shaft groove.
STEP 04
Mount the lever and test the inputs
Connect the wiring without stretching or pinching it. Keep your hands and tools clear of the interior, reconnect power, and check all four directions, diagonals and neutral in a controller test screen or your game's practice mode. Disconnect power again before closing the bottom panel.
Hold the shaft while tightening the bat top
Fit the included 8 mm wrench to the shaft's wrench flats and hold the shaft steady while tightening the bat top. If the threads do not engage smoothly or the top starts at an angle, stop and realign it instead of forcing it.
Unsure about parts or fitment?
Contact us before ordering.
Send us your fightstick model, interior photos,
and details of the SANJUKS parts you plan to use.
Contact ISTMALL through the product inquiry section.
